Finishing touch

I thought the hardest part was the construction of the bamboo blank... but little does I know, I am still cracking my head over what and how to wrap it up...

So many choice... but only 1 set of blank.


Perhaps a Struble D2 downlocking reel seat ..... simple.

Or something unique .. cork insert with sliding band. Stainless steel rings or bamboo rings?

What sort of wrapping thread color to match the hardwares... ?
Earthy color or striking color......?

Well, let's just see how things goes..............

Bamboo rod with a difference.....

After having a hard time building my 1st bamboo rod, my 2nd one seems to be much more easier..

Perhaps after all those trial and errors, and problems which I have encountered during the making of my 1st bamboo rod, I guessed things just became simpler. As they said, the 1st step is always the hardest.

I am on my 2nd bamboo rod and this time will be slightly different from the 1st one. This time I will try to build an integral bamboo ferrule. Yes, no more metal ferrules.

Remembering the 1st time I saw a bamboo rod with integral bamboo ferrules was a Calviello's rod.

My friend, Riki bought one. It was pricey but very unique. I never saw anything like that before in Malaysia. There are so few people who uses bamboo fly rods here, let alone one with bamboo ferrules.

Even before I completed my 1st bamboo rod, I started looking up on bamboo ferrules. To my knowledge, there are 2 rod makers pioneered bamboo ferrules in their own ways. Marcelo Calviello with his BOBFS ( Bamboo over bamboo ferrule system ) < http://calviellorods.blogspot.com/2007/10/question-answers-about-bamboo-ferrules.html > and Bjarne Fries with his FIBH ( Fries Integrate Bamboo Hexaferrule ) connection < http://www.fries-rods.dk/ >.

Later I got to know about Alberto Poratelli from some forumers in some bamboo fly rods related forums. I started reading Alberto's write up on his findings and the construction of the bamboo ferrules. < http://www.aprods.it/e_presentazione.htm >

I told myself I must make one or at least try to make one for myself. I have seen some hobbyist rod makers in US have done it and I think I can do it.... I have some help from Larry Lohkamp and Mike Peck of The Bamboo Rod Room in sourcing information on bamboo ferrules.

That was how this project started...

The most difficult part of making bamboo rod to me are the initial steps... stripping and straightening.

Rough strip forming was easy.. as I have got a Medved beveller..














Setting up the planing was a bit difficult because there is a swell at the end of the tip for the bamboo ferrule. There was also some calculation for the swelling, thickness and the depth of the bamboo ferrules. My timber planing form was made of hard wood and it was difficult to flex to form the swell part.


















Finally, the tip section is completed.






Now for the difficult part.... construction of the bamboo ferrules.
I do not have the form for cutting the thin wall for the ferrules. I made a shallow groove on some timber that I have.














The thin wall for bamboo ferrule that I made was measured at 0.96mm.
The thickness should be the same for all 6 strips, if not, there will be a problem inserting the spigot.


Gluing up the strips.. and hang dry


While waiting for the tip to dry, I started work on the butt section.


2 days later, excessive glue are scrapped and the blank are sanded.






The bamboo ferrules need to be reinforce or strengthen due to its' thin wall.

















A layer of epoxy was applied to the internal side of the bamboo ferrules.
Excessive epoxy at the opening was carefully removed.












Silk wrapping was done to reinforce the bamboo ferrule externally. A thin layer of epoxy were applied to the silk wrapping and this turned the wrapping translucent.

The progress has been good so far. I managed to completed the blank...
And next step will be the finishes.

Bamboo harvesting for rod making

Seems like my bamboos are running out of stock..
Last week I went to Sg. Batangsi with a few fly buddies to harvest a few bamboo culms for rod building. We cut down a few bamboo trees and got 5 bamboo culms... but ended up with only 3.
2 got away and flowed down the stream..

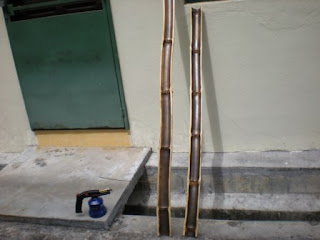

And here's what we took home...
Gotta wait for a couple of months before I can do something with it...

Building my 1st Bamboo Fly Rod (The Malaysia Chapter)

I have always wonder why bamboo fly rods are so darn expensive.. I mean, there are just made of bamboo. It easily cost from RM 900 to a ridiculously RM 10,000 or more. The expensive ones are more of collector's item. Who would fish with a RM 10,000 rod? They must be out of their mind..

It wouldn't be that hard to make one, I guess. I took the challenge and tried to make one myself.
Not a big problem, I thought. My journey started 8 months ago that is when I started reading about the construction of bamboo fly rod from the internet and asked some bamboo makers from USA for tips and how to..

Even before I start, I am already having a problem. Raw material !!!! Most bamboo rods are made of Tonkin bamboo. Where the hell am I supposed to find that in Malaysia????? Then I found out Yoshida, a bamboo rod maker in Japan uses local japanese bamboo Madake-Phyllostachys bambusoides to make his rod and same goes for Calviello's rod from Argentina, he uses local Argentina bamboo. There are 50 over species of bamboo in Malaysia and I am sure I could find one that is suitable to make the rod.

My venture for bamboo started and I found one which I think can be made into fly rod. Thickness of culms about 10mm and quite dense in fibers. I search and read through the bamboo species indentification, that species could be a Dendrocalamus.




















Splitting the BOO

Finally I kicked off my 1st bamboo fly rod making project..

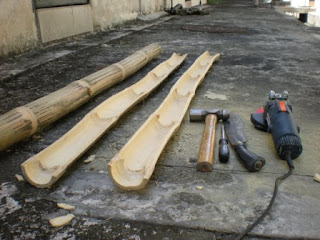

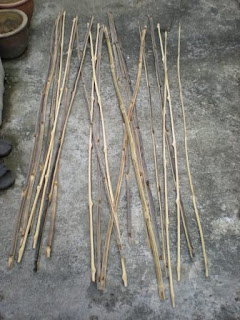

The bamboo are hand split and flamed from the inside. I tried to maximized the numbers of strips possible. I managed to salvage 19 strips out of 26 strips from the 2 bamboo culms. The rest was either too narrow or broken.

Straightening

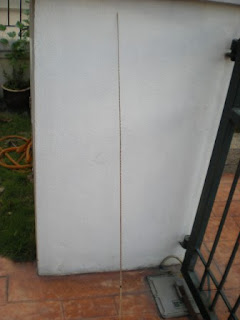

This was the complicated part. Since the bamboo I used were not as straight as Tonkin and there was a lot of nodes on the strips, I had trouble straightening the strips. Additional work have to be done to straighten the strips. I have to heat and straighten the strips several times before I got them straight.... not 100% straight but still within a manageable tolerance.

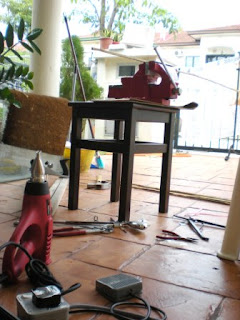

I used a variable control heat gun, a vise and a press handle.





















Rough strips

Before the final taper planning, I have to form the strip to a 60* angle strips. I tried doing this with a rough planning form. But every time I planned the strips , it got odd angles. The strips just don't turn out well.

I have to construct a Medved beveler before I made more damages and lose my strips.


Medved Beveler

I did not follow exactly as the plans but made a few changes, thinking that it would be alright.

This is the 1st one I built. Noticed that "press arms" are facing each other. Bad idea !!!
It make the strips more difficult to pass through the feeder.

I have to change the "press arms" to a single direction so that I don't have to force the strip through the feeder.

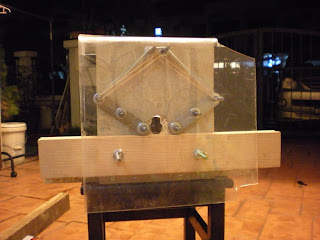

Medved Beveler rebuilt.

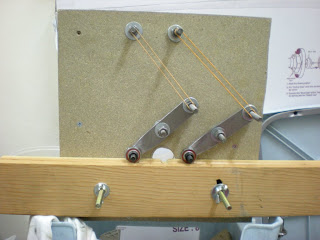

Changed of direction of the "press arms" and roller bearing added.











Back to rough strips..

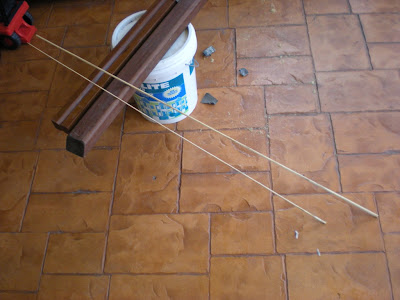

I was back on track. The rough strips turned out to be 60* angle at all side.






























Rough strips binding and heat treatment

I managed to do 4 sets of rough strips and bind them for heat treatment for further straightening.

Heat treatment?? How??

Back to the computer to search for the easiest heat treatment oven that can be constructed.
Instead of using heat elements, I made used of the hot air gun I had and constructed a heat treatment oven that uses hot air gun.

I used these..















...and came out with this..

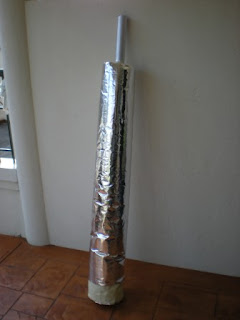

And wrapped it with a layer of rock wool and aluminum sisalation sheet.

After heat treating the rough strips, I was ready for final planing...

Planing form

As a newbie in bamboo rod making and sourcing for a steel planing form would be very costly.

I don't think it is available in Malaysia. Either I have to import it from the States or fabricate one myself. I tried to ask a friend to make a steel planing form for me but it seems that he don't quite understand how to get the taper correctly. The next best choice is to make one out of timber myself. Timber is the easiest available material that I can get my hands on.

With all the knowledge and information I have gathered from the internet, I went ahead and make one.

The timber planing form turned out to be okay.

Planing process

Some say it is better to soak the strips before planing. But I prefer to plan the strip just as it is. Bit by bit, I started to plan the strips. That is because I was using those cheap planes. Made in China... but it was not all that bad.
My final taper turn out to be just fine.




















Then I bind the strips together and see how it turn out...

That was the tip section.

Now for the easier section... the butt section.
















Gluing

I used Titebond III to glue all the strips together. Hand bind and the strips blank was hanged for drying.

After the glue is set, the thread and excessive glue was removed by scrapping with a thick blade or glass edge.


The bamboo rod blank is then measured and cut. The taper for this bamboo rod blank is Dickerson 7012, 7' 4wt.


Ferrules

I used normal brass chrome plated ferrules for this rod. NS ferrule for fly rod is just too expensive.


Hardware installation

I hand rubbed the bamboo rod blank with Poly Urethane two times before fixing up the hardwares.

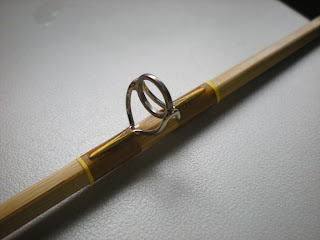

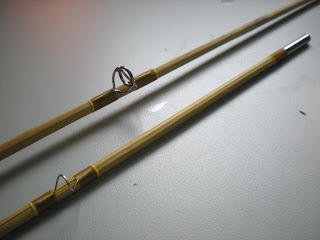

Wrapped with Pearsall's Silk Golden color with NCP Yellow trims.
I used Pac Bay lite wire snake guides and Mildrum stripping guides.

The wraps was finished with several layers of poly urethane. I did not want to use FC epoxy because I want to minimize the weight of this rod.

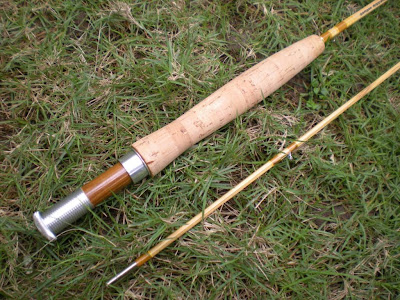

Final touch

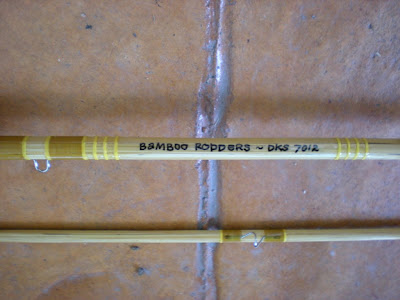

A final layer of hand-rub poly urethane finishes on the rod after the inscription was done.


Testing and fishing

The bamboo rod was intended to be a 4wt rod, but it turn out to be slightly softer. It takes a 3wt line with no problem. Parabolic flex.
